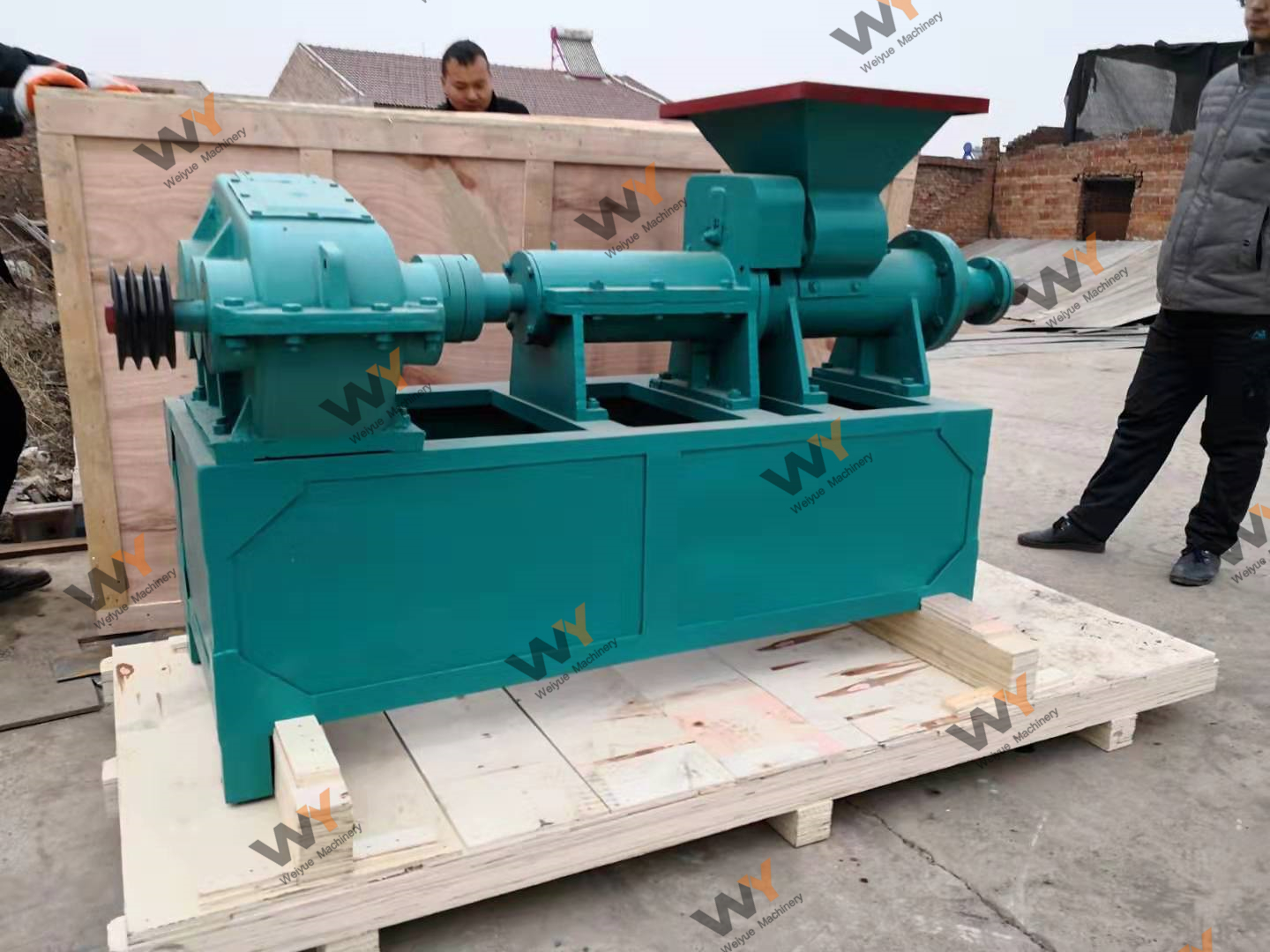

Charcoal Briquette Stick Making Machine
The biomass briquette machine is used to make stick shape charcoal and coal briquette from charcoal dust or coal dust. In order to make strong briquette, we designed the high pressure extruding machine that with three propellers, the final briquette has the characteristic of high density and long burning time. The diameter of the briquette made by theextruding machine from 10mm to 50mm.
Product descriptions
Working Principles:
1.The motor transmits power to transmission through the V-belt.
2.At the same time, the transmission output shaft transmits power to propeller through the floating coupling.
3.The thruster of propeller push coal forward through forming die to produce the high-pressure coal-stick.
Features:
1. This coal dust briquette machine is a kind of briquette machine which can press the powder of coal, charcoal, carbon black and
other materials into rods which has certain intensity.
2. The shape of rods can be round, six prismatic, square and so on. Also the rod shape can be customized.
3. The rods have large heating value, high economic benefit, The machine is widely used in chemical fertilizer factory, boiler and
so on.
4. For the material, the particle size should be less than 5 mm adding material; the coal contains moisture content 12-14%.
Advantages:
1.The use of charcoal/coal rods can make full use of charcoal/coal and coal powder, carbon powder, no need to add lime in the production process, reduce fuel cost, increase coal and carbon heat, and have high economic benefits.
2.The automatic blade can adjust the speed to adjust the size of the product.
3.We have a wide range of molds to choose from and can be customized.

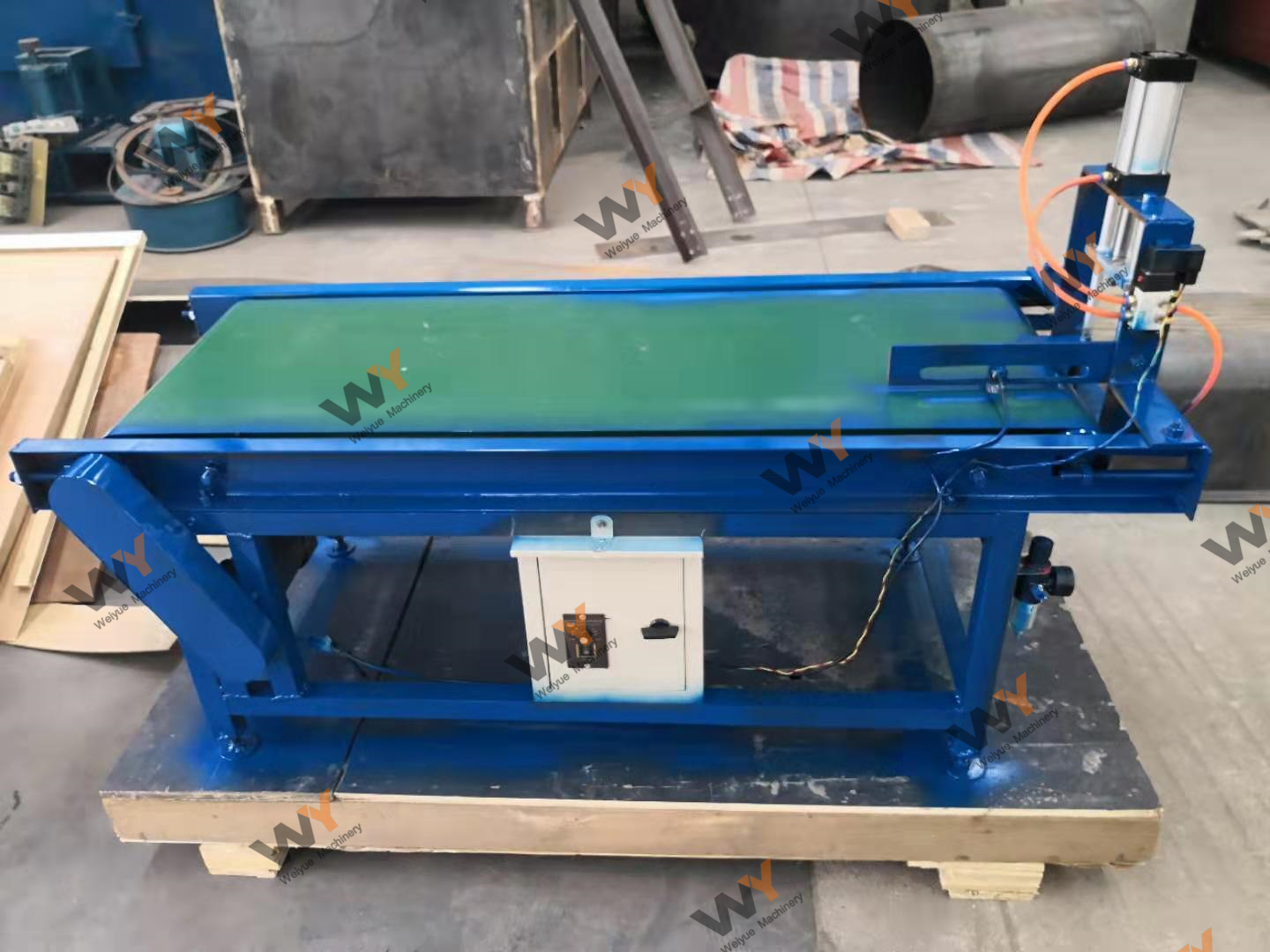

4.Equipped with a speed-adjustable conveyor, the speed-adjusting machine can make the product shape better without crushing or breaking.
